Máy khoan bàn

Thương hiệu

Bench drill FLOTT Turbo Drill / 230 V

Flott Turbo Drill, robust bench drill with high spindle speeds and thread-cutting device, thread depth setting by digital depth gauge. The core functions can be controlled with only four buttons and easy menu navigation via the touchscreen display together with the rotary push-button. Drilling/threading functions, precise display of drilling depth (set/actual), rotational speed, drilling stroke counting function, intelligent memory function for the parameters, energy-saving mode. Rugged, brushless three-phase 230 V motor with frequency converter, motor circuit breaker, drilling depth stop, LED lighting. Delivery incl. vision protection, excluding drill chuck.

Appropriate accessories:
241000 Keyless drill chuck ALBRECHT
241080 Keyless drill chuck RÖHM Spiro
241120 Keyless drill chuck RÖHM Supra
241220 quick-action drill chuck RÖHM Supra-SK


GERMANY

Made in Germany

Mã & tên hàng Điện áp (V)Công suất (kW)Khoan max (mm) Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
230V / 1 phase0.548
162,469,000
PCE

Bench drill FLOTT TB 10 Eco PLUS / 230 V

Flott TB Eco PLUS, robust, high-quality and inclined rotational cover for easy reading of speed, quick-adjust and ergonomic drill depth stop with scale, infinitely variable speed adjustment with digital display, thermal overload protection, drill protection with electronic safety device, low-voltage trigger, emergency stop button, LED lighting, connection cable.

Appropriate accessories:
241000 Keyless drill chuck ALBRECHT
241080 Keyless drill chuck RÖHM Spiro
241120 Keyless drill chuck RÖHM Supra



GERMANY

Made in Germany

Mã & tên hàng Điện áp (V)Công suất (kW)Khoan max (mm) Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
230V / 1 phase0.4512
89,955,000
PCE

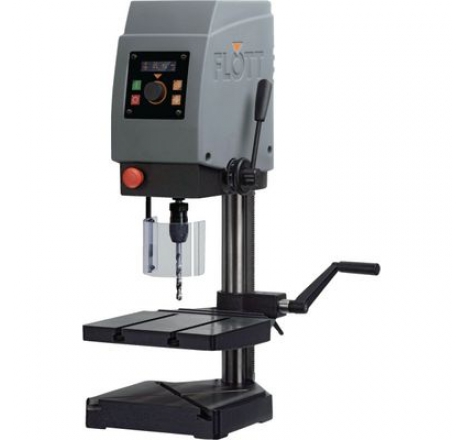

Bench drill FLOTT  TB 10 PLUS / 230 V

Flott TB PLUS, with thread cutting equipment, adjustment of the thread depth using digital depth display. The core functions can be controlled with only four buttons and easy menu navigation via the touchscreen display together with the rotary push-button. Drilling/threading functions, precise display of drilling depth (set/actual), rotational speed, drilling stroke counting function, intelligent memory function for the parameters, energy-saving mode. Rugged, brushless three-phase 230 V motor with frequency converter, motor circuit breaker, drilling depth stop, LED lighting. Supplied with face shield, without drill chucks.

Designs:
583510.0200 TB 10 PLUS: Machine table with 2 cross slots, drill head height adjustment by hand
583510.0300 TB 13 PLUS: Drilling table with 2 T slots, distance 125 mm, table height adjustment with rack and pinion, machined faceplate with 2 T slots
583510.0400 TB 15 PLUS: Drilling table with 2 T-slots, 125 mm spacing, table height adjustment with rack and pinion, machined base plate with 2 cross slots


GERMANY

Made in Germany

Mã & tên hàng Điện áp (V)Công suất (kW)Khoan max (mm) Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
230V / 1 phase0.5412
135,931,000
PCE
230V / 1 phase0.5415
167,930,000
PCE
230V / 1 phase0.7518
187,845,000
PCE

Máy khoan bàn 3 pha FLOTT  SB 23 PLUS/400 V

Flott SB 23 PLUS, with thread-cutting device, thread depth setting by digital depth gauge. The core functions can be controlled with only four buttons and easy menu navigation via the touchscreen display together with the rotary push-button. Drilling/threading functions, precise display of drilling depth (set/actual), rotational speed, drilling stroke counting function, intelligent memory function for the parameters, energy-saving mode. Rugged, brushless three-phase 400 V motor with frequency converter, motor circuit breaker, drilling depth stop, LED lighting. Delivery incl. vision protection, excluding drill chuck.

Designs:
483515.0100 SB 23 PLUS: Drilling table with 2 T-slots, 125 mm spacing, with passage hole, table height adjustment with rack and pinion


GERMANY

Made in Germany

Mã & tên hàng Điện áp (V)Công suất (kW)Khoan max (mm) Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
400V / 3 phase1.525
430,463,000
PCE

Bench drill PROMAC 211 / 230 V

1-speed motor 230 V, 5 spindle speeds, speed adjustment using V-belts, drilling table with parallel slots, emergency stop switch,depth stop, keyless chuck 1-16 mm and face shield.

Appropriate accessories:
154410 Twist drill assortment FUTURO


SWITZERLAND

Made in Switzerland

Mã & tên hàng Điện áp (V)Công suất (kW)Khoan max (mm) Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
230V / 1 phase0.1916
26,783,000
PCE

Bench drill PROMAC 212 / 230 V

1-speed Motor 230 V, 5 spindle speeds, drilling spindle MK 2, speed adjustment using V-belt, self-starting lockout, fused belt cover. Drilling table with cross slots, height adjustment using rack and pinion, emergency stop switch, with keyless chuck 1-16 mm and chip guard.

Appropriate accessories:
154410 Twist drill assortment FUTURO
239710 Cone cleaner
242640 Ejector wedge
242660 Ejector wedge



SWITZERLAND

Made in Switzerland

Mã & tên hàng Điện áp (V)Công suất (kW)Khoan max (mm) Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
230V / 1 phase0.3716
40,174,000
PCE

Máy khoan bàn FLOTT SB 18 PLUS

FLOTT SB 18 PLUS, with thread cutting device. The core functions can be controlled with only four buttons and easy menu navigation via the OLED touchscreen display together with the rotary push-button. Drilling/threading functions, precise display of drilling depth (set/actual), rotational speed, drilling stroke counting function, intelligent memory function for the parameters, energy-saving mode. Rugged, brushless three-phase 230 V motor with frequency converter, motor circuit breaker, drilling depth stop, LED lighting. Delivery incl. vision protection, excluding drill chuck. Complies with DIN EN 55011:2016 + A1:2017.

Appropriate accessories:
241010 Keyless drill chuck ALBRECHT one-piece


GERMANY

Made in Germany

Mã & tên hàng Điện áp (V)Công suất (kW)Khoan max (mm) Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
230V / 1 phase0.7520
205,036,000
PCE

Máy khoan bàn 3 pha FLOTT SB P30 STG PV electronic

Flott SB P30 STG PV electronic, with thread cutting device up to max. M20 — digital depth display for setting thread cutting depth. Drill depth adjustment with fine adjustment and undervoltage release, digital drill depth, speed and feed display. Infinite speed control, infinitely variable feed incl. spindle monitoring, free cutting device, table height adjustment via rack, programmable drilling depth cut-off; simple operation. Drill handle with push-button for switching feed on/off. LED lighting, thermal overload protection.

Appropriate accessories:
241010 Keyless drill chuck ALBRECHT one-piece


GERMANY

Made in Germany

Mã & tên hàng Điện áp (V)Công suất (kW)Khoan max (mm) Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
400V / 3 phase1.4530
510,354,000
PCE

Máy khoan bàn 3 pha FLOTT SB 30 MV PLUS

Flott SB 30 MV PLUS, with thread cutting device incl. right-left function, ventilation via drill handle with push-button, the core functions can be controlled with only four keys and easy menu navigation via the OLED touchscreen display together with the rotary push-button. Mechanical feed of the Z-axis incl. electromagnetic coupling for three feed speeds, drilling handle with push-button. Drilling/threading functions, precise display of drilling depth (set/actual), rotational speed, drilling stroke counting function, intelligent memory function for the parameters, energy-saving mode. Rugged, brushless three-phase 400 V motor with frequency converter, motor circuit breaker, drilling depth stop, LED lighting. Delivery incl. vision protection, excluding drill chuck. Complies with DIN EN 55011:2016 + A1:2017.

Appropriate accessories:
241010 Keyless drill chuck ALBRECHT one-piece


GERMANY

Made in Germany

Mã & tên hàng Điện áp (V)Công suất (kW)Khoan max (mm) Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
400V / 3 phase332
506,098,000
PCE

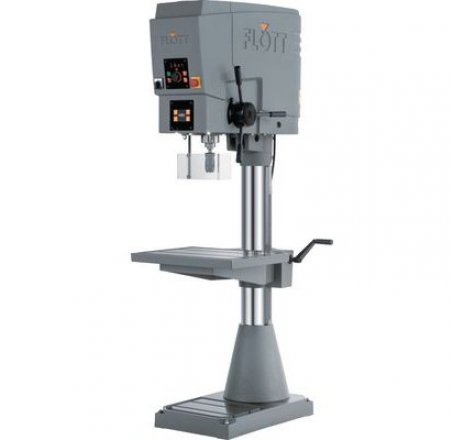

Máy khoan bàn 3 pha FLOTT SB 40 NC PLUS

Flott SB 40 NC PLUS, with thread cutting device for sizes up to M36. The core functions can be controlled with only four buttons and easy menu navigation via the OLED touchscreen display together with the rotary push-button. Additional 4.3” panel with touch operation; free selection - drilling - reaming - countersinking - flow forming - thread cutting and free programming. Comfort Human Machine Interface (HMI) for programming the quill feed. Robust, high-quality drill head hood with ergonomically inclined front. Infinite speed control, drilling/threading functions, precise display of drilling depth (set/actual), speed, drilling stroke counting function, intelligent memory function for the parameters, energy-saving mode. Rugged, brushless three-phase 400 V motor with frequency converter, motor circuit breaker, drilling depth stop, LED lighting. Delivery incl. vision protection, excluding drill chuck. Complies with DIN EN 55011:2016 + A1:2017.


GERMANY

Made in Germany

Mã & tên hàng Điện áp (V)Công suất (kW)Khoan max (mm) Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
400V / 3 phase440
933,365,000
PCE

Bench drill PROMAC 370ELB / 230 V

For general drilling jobs, rugged, reliable. Speed adjustment using V-belt, drilling table with cross slots, adjustable with rack and pinion, machined baseplate with 2 T slots. Emergency stop switch, self-starting lockout; belt cover and face shield electronically secured, with keyless chuck 1-16 mm.

Designs:
483560.0110 370ELB: 1-speed-motor 230 V
483560.0200 378CLB: 2-speed-motor 400 V


SWITZERLAND

Made in Switzerland

Mã & tên hàng Điện áp (V)Công suất (kW)Khoan max (mm) Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
230V / 1 phase0.7516
63,311,000
PCE
400V / 3 phase0.5516
77,176,000
PCE
