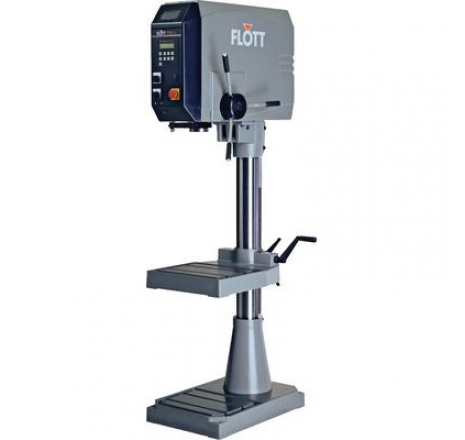

Flott SB 40 NC PLUS, with thread cutting device for sizes up to M36. The core functions can be controlled with only four buttons and easy menu navigation via the OLED touchscreen display together with the rotary push-button. Additional 4.3” panel with touch operation; free selection - drilling - reaming - countersinking - flow forming - thread cutting and free programming. Comfort Human Machine Interface (HMI) for programming the quill feed. Robust, high-quality drill head hood with ergonomically inclined front. Infinite speed control, drilling/threading functions, precise display of drilling depth (set/actual), speed, drilling stroke counting function, intelligent memory function for the parameters, energy-saving mode. Rugged, brushless three-phase 400 V motor with frequency converter, motor circuit breaker, drilling depth stop, LED lighting. Delivery incl. vision protection, excluding drill chuck. Complies with DIN EN 55011:2016 + A1:2017.

Hiển thị thêm

Thông số kĩ thuật

Điện áp (V)	400V / 3 phase
Công suất (kW)	4
Khoan max (mm)	40
Thông số kỹ thuật	Type SB 40 NC PLUS Normal drilling performance mm 40 Continuous drilling performance mm 35 Thread cutting performance mm M 36 Connection V/Hz 400 / 50 Power kW 4.0 Spindle speeds min-1 0...4000 Spindle type MK 4 Drilling depth mm 160 Capacity mm 300 T-slots width mm 14 Column Ø mm 140 Height mm 1980 Weight kg 440 Scope of delivery Without drill chuck and vice
