Mâm cặp máy tiện 4 chấu FN

FN cast
DIN 55029, with stud bolt for Camlock
Design
Chuck body made of special cast with central lubrication. Plane spiral and clamping jaws hardened. Flanks of the spiral and screw-thread flanks of the clamping jaws ground.
Application
Standard chuck usable on lathes, rotary tables, dividers, etc.
Normal accessories
1 set of drill jaws (externally graduated)
1 set of turning jaws (internally graduated)
1 set of screws, chuck key

Appropriate accessories:
250040 Block jaw BL
250050 Base jaw GB
250060 Top jaw AB
250940 Set of hollowing rings
401000 Hand push gun ABNOX

Appropriate spare parts:
250020 Drill jaw BB
250030 Turning jaw DB
323450 Square socket wrench

Steel version upon request

Made in Poland

Chấu kẹp cho mâm cặp BB

Hardened, externally graduated.
Set of 4 pieces


Suitable for:
250000 Four-jaw chuck FN casting Cyl. centring receptacle DIN 6350
250010 Four-jaw chuck FN casting Receptacle DIN 55029 Camlock


Stepped and hardened jaws, supplied as supplement or as spares, must be ground on the chuck.

Made in Poland

Chấu kẹp cho mâm cặp DB

Hardened, internally graduated.
Set of 4 pieces


Suitable for:
250000 Four-jaw chuck FN casting Cyl. centring receptacle DIN 6350
250010 Four-jaw chuck FN casting Receptacle DIN 55029 Camlock


Stepped and hardened jaws, supplied as supplement or as spares, must be ground on the chuck.

Made in Poland

Chấu kẹp cho mâm cặp BL

Not hardened, not graduated.
Set of 4 pieces

Usable with:
250000 Four-jaw chuck FN casting Cyl. centring receptacle DIN 6350
250010 Four-jaw chuck FN casting Receptacle DIN 55029 Camlock

Made in Poland

Chấu kẹp cho mâm cặp GB

Hardened, with tightening screws.
Set of 4 pieces

Usable with:
250000 Four-jaw chuck FN casting Cyl. centring receptacle DIN 6350
250010 Four-jaw chuck FN casting Receptacle DIN 55029 Camlock

Made in Poland

Chấu kẹp cho mâm cặp AB

Not hardened, not graduated.
Set of 4 pieces

Usable with:
250000 Four-jaw chuck FN casting Cyl. centring receptacle DIN 6350
250010 Four-jaw chuck FN casting Receptacle DIN 55029 Camlock

Made in Poland

Mâm cặp 4 chấu FN

FN cast
DIN 6350, cylindrical centring receptacle
With individually adjustable, centre-clamping jaws (Westcott system).
Version
Chuck body made of special cast, plane spiral and clamping jaws are case-hardened. Flanks of the spiral and screw-thread flanks of the clamping jaws ground on both slides. Pinion and adjusting spindle hardened and ground.
Application
For clamping irregularly formed workpieces. The base jaws can be adjusted centrally together with the reverse jaws. In addition, the reverse jaws can be adjusted independently of each other with the help of the adjusting spindle.

Standard accessories
1 Set of hardened basic jaws
1 Set of hardened reversible jaws
1 Set of screws
1 Clamping key, 1 adjusting key


Important: Adjust only the jaws with the adjusting spindle; workpieces must be clamped only with pinion.
Replacement jaws and other sizes on request

Made in Poland

Mâm cặp 3 chấu FN

Steel body, with jaw retainer (system Reishauer)
DIN 6350, cylindrical centring receptacle
Design
Centrally clamping precision chuck with steel body. All gliding parts made of selected, high-alloy steels, hardened for use, ground highly precisely on special machines. All parts are replaceable. The jaw guides are wear-resistant hardened in the special process.
Application
For lathe work with high demands on precision of concentricity and repeatability with simultaneously high clamping strength.
Normal accessories
1 set of hard, reversible clamping jaws, internally ground in the chuck.
1 set of screws and the corresponding fastening elements acc. to the standard.
1 chuck key, rubber inserts

Designs:
125 mm: without jaw retainer

Appropriate accessories:
250240 Clamping jaws
250250 Base jaws
250260 Top jaws

Made in Poland

Mâm cặp 3 chấu FN

Steel body, with jaw retainer. (system Reishauer).
DIN 55029, with stud bolt for Camlock
Design
Centrally clamping precision chuck with steel body. All gliding parts made of selected, high-alloy steels, hardened for use, ground highly precisely on special machines. All parts are replaceable. The jaw guides are wear-resistant hardened in the special process.
Application
For lathe work with high demands on precision of concentricity and repeatability with simultaneously high clamping strength.
Normal accessories
1 set of hard, reversible clamping jaws, internally ground in the chuck.
1 set of screws and the corresponding fastening elements acc. to the standard.
1 chuck key, rubber

Appropriate accessories:
250240 Clamping jaws
250250 Base jaws
250260 Top jaws

Made in Poland

Hàm kẹp cho mâm cặp 3 chấu

Hard, not ground.
Set of 3 pieces

Usable with:
250200 Tapered rod lathe chuck RHU Cyl. centring receptacle DIN 6350
250220 Tapered rod lathe chuck RHU Receptacle DIN 55029 Camlock

Stepped and hardened jaws, supplied as supplement or as spares, must be ground on the chuck.

Made in Poland

Chấu kẹp cho mâm cặp 3 chấu

Hard, ground.
Set of 3 pieces

Usable with:
250200 Tapered rod lathe chuck RHU Cyl. centring receptacle DIN 6350
250220 Tapered rod lathe chuck RHU Receptacle DIN 55029 Camlock

Made in Poland

Hàm kẹp cho mâm cặp 3 chấu

Soft.
Set of 3 pieces

Usable with:
250200 Tapered rod lathe chuck RHU Cyl. centring receptacle DIN 6350
250220 Tapered rod lathe chuck RHU Receptacle DIN 55029 Camlock

Made in Poland

Mâm cặp nhanh

Type A
Steel body, centrally clamping.
With soft drill jaws (externally graduated), without shaft.
Appropriate accessories:
250700 Shaft J-F
Appropriate spare parts:
250550 Jaw set

Made in Switzerland

Mâm cặp nhanh

Type B
Steel body, centrally clamping.
With soft drill jaws (internally graduated) type B, without shaft.
Appropriate accessories:
250700 Shaft J-F
Appropriate spare parts:
250560 Jaw set

Made in Switzerland

Mâm cặp nhanh

Type W
Steel body, centrally clamping.
With soft full jaws which can be adjusted to the work piece, without shaft.

Appropriate accessories:
250700 Shaft J-F

Appropriate spare parts:
250570 Jaw set

Made in Switzerland

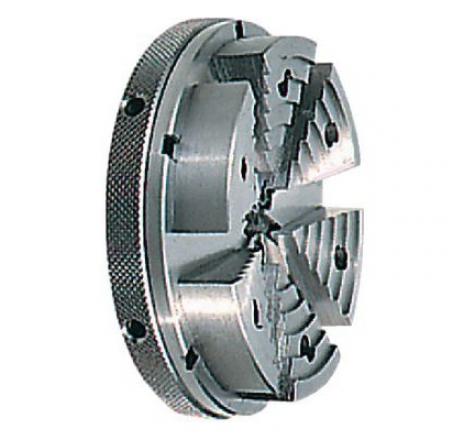

Mâm cặp nhanh

Type D
Steel body, centric clamping.
With reversible jaws, case-hardened.
Appropriate accessories:
250700 Shaft J-F
Appropriate spare parts:
250580 Jaw set

Made in Switzerland

Chấu kẹp mâm cặp nhanh

Type A

Suitable for: 250500 Quick-action chuck

Made in Switzerland

Chấu kẹp mâm cặp nhanh

Type B

Suitable for: 250510 Quick-action chuck

Made in Switzerland

Chấu kẹp mâm cặp nhanh

Type W

Suitable for: 250520 Quick-action chuck

Made in Switzerland
