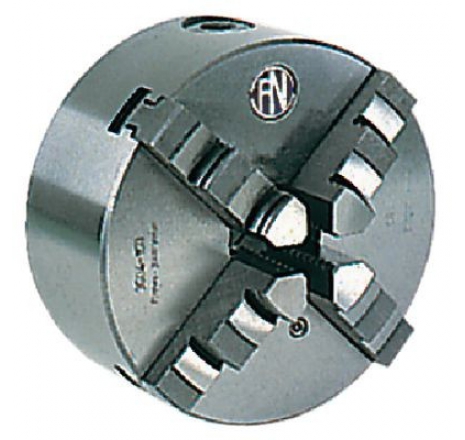

Mâm cặp 4 chấu FN - 250100.0200

Made in Poland

Electronic Catalog

Mã đặt hàng: 250100.0200

FN cast
DIN 6350, cylindrical centring receptacle
With individually adjustable, centre-clamping jaws (Westcott system).
Version
Chuck body made of special cast, plane spiral and clamping jaws are case-hardened. Flanks of the spiral and screw-thread flanks of the clamping jaws ground on both slides. Pinion and adjusting spindle hardened and ground.
Application
For clamping irregularly formed workpieces. The base jaws can be adjusted centrally together with the reverse jaws. In addition, the reverse jaws can be adjusted independently of each other with the help of the adjusting spindle.

Standard accessories
1 Set of hardened basic jaws
1 Set of hardened reversible jaws
1 Set of screws
1 Clamping key, 1 adjusting key


Important: Adjust only the jaws with the adjusting spindle; workpieces must be clamped only with pinion.
Replacement jaws and other sizes on request
