Mũi taro ren mịn

Thương hiệu

164390

Mũi taro ren tay hiệu năng cao FUTURO, Metric ISO fine thread



straight grooves, progressive tap, HSS-E_PM, THL coating, metric ISO fine thread, Tolerance field 6HX, forme of taper lead B (3.5-5.5 x P), number of teeth 3-4
Power class
For alloyed and stainless steels, nodular cast iron, long-chipping aluminium wrought alloys, long-chipping copper and brass alloys and duroplasics.
Hole Type: through holes < 2.5 x d.

Designs:
MF8...MF20: falling through shaft, DIN 374

ITALY

Made in Italy

Mã & tên hàng SizeBước ren (mm)Dài (mm) Đơn giá (VNĐ) & Số lượng Tình trạng hàng

164390.0100

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF8190
1,324,000 PCE

164390.0200

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF101.2590
1,496,000 PCE

164390.0300

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF101100
1,532,000 PCE

164390.0400

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF121.5100
1,815,000 PCE

164390.0500

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF121.25100
1,824,000 PCE

164390.0600

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF121100
1,993,000 PCE

164390.0700

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF141.5100
2,406,000 PCE

164390.0800

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF161.5100
2,655,000 PCE

164390.0900

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF181.5110
3,597,000 PCE

164390.1000

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF201.5125
4,774,000 PCE

Xem thêm >>

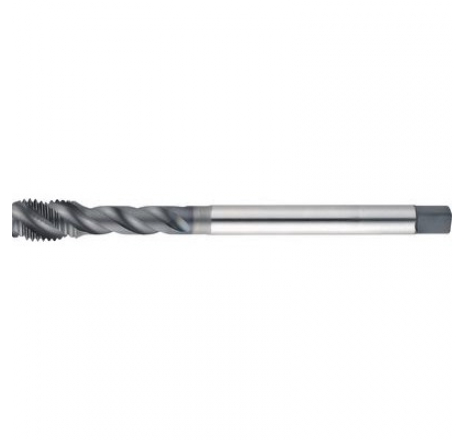

164395

Mũi taro ren máy FUTURO, Metric ISO fine thread



spiral grooves 45°, HSS-E_PM, THL coating, metric ISO fine thread, Tolerance field 6HX, forme of taper lead C (2-3 x P), number of teeth 3-4
Power class
For alloyed and stainless steels, nodular cast iron, long-chipping cast aluminium and aluminium wrought alloys, and long-chipping copper and brass alloys.
Hole Type: pocket holes < 2.5 x d.

Designs:
MF8...MF20: falling through shaft, DIN 374

ITALY

Made in Italy

Mã & tên hàng SizeBước ren (mm)Dài (mm) Đơn giá (VNĐ) & Số lượng Tình trạng hàng

164395.0100

Mũi taro ren máy FUTURO, Metric ISO fine thread

 MF8190
1,528,000 PCE

164395.0200

Mũi taro ren máy FUTURO, Metric ISO fine thread

 MF101.2590
1,720,000 PCE

164395.0300

Mũi taro ren máy FUTURO, Metric ISO fine thread

 MF10190
1,756,000 PCE

164395.0400

Mũi taro ren máy FUTURO, Metric ISO fine thread

 MF121.5100
2,102,000 PCE

164395.0500

Mũi taro ren máy FUTURO, Metric ISO fine thread

 MF121.25100
2,102,000 PCE

164395.0600

Mũi taro ren máy FUTURO, Metric ISO fine thread

 MF121100
2,269,000 PCE

164395.0700

Mũi taro ren máy FUTURO, Metric ISO fine thread

 MF141.5100
2,758,000 PCE

164395.0800

Mũi taro ren máy FUTURO, Metric ISO fine thread

 MF161.5100
3,058,000 PCE

164395.0900

Mũi taro ren máy FUTURO, Metric ISO fine thread

 MF181.5110
3,914,000 PCE

164395.1000

Mũi taro ren máy FUTURO, Metric ISO fine thread

 MF201.5125
5,116,000 PCE

Xem thêm >>

164400

Mũi taro ren tay FUTURO, Metric ISO fine thread



straight grooves, progressive tap, HSS-E, vaporized, metric ISO fine thread, Tolerance field ISO2 / 6H, forme of taper lead B (3.5-5.5 x P)
Power class
For general steels up to 800 N/mm2.
Hole Type: through holes.

Designs:
MF4...MF20: falling through shaft, DIN 374

GERMANY

Made in Germany

Mã & tên hàng SizeBước ren (mm)Dài (mm) Đơn giá (VNĐ) & Số lượng Tình trạng hàng

164400.0100

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF40.563
560,000 PCE

164400.0200

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF50.570
553,000 PCE

164400.0300

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF60.580
481,000 PCE

164400.0400

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF80.580
637,000 PCE

164400.0500

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF80.7580
551,000 PCE

164400.0600

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF8190
513,000 PCE

164400.0700

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF10190
587,000 PCE

164400.0800

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF101.25100
632,000 PCE

164400.0900

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF121100
701,000 PCE

164400.1000

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF121.25100
740,000 PCE

164400.1100

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF121.5100
668,000 PCE

164400.1200

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF141100
925,000 PCE

Xem thêm >>

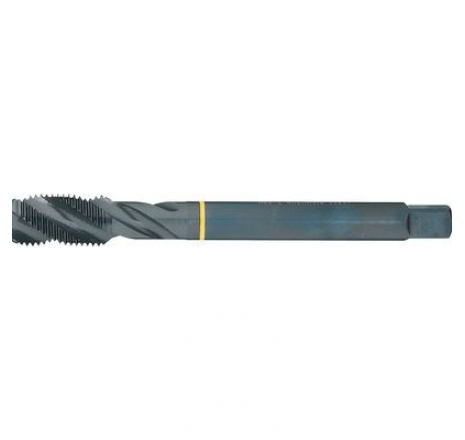

164410

Mũi taro ren tay FUTURO, Metric ISO fine thread



spiral grooves 40°, HSS-E, vaporized, metric ISO fine thread, Tolerance field ISO2 / 6H, forme of taper lead C (2-3 x P)
Power class
For general steels up to 800 N/mm2.
Hole Type: pocket holes.

Designs:
MF6...M 20: falling through shaft, DIN 374

GERMANY

Made in Germany

Mã & tên hàng SizeBước ren (mm)Dài (mm) Đơn giá (VNĐ) & Số lượng Tình trạng hàng

164410.0100

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF60.580
478,000 PCE

164410.0200

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF8190
519,000 PCE

164410.0300

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF10190
584,000 PCE

164410.0400

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF101.25100
632,000 PCE

164410.0500

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF121.25100
738,000 PCE

164410.0600

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF121.5100
686,000 PCE

164410.0700

Mũi taro ren tay FUTURO, Metric ISO fine thread

 MF161.5100
1,052,000 PCE

164410.0800

Mũi taro ren tay FUTURO, Metric ISO fine thread

 M 201.5125
1,475,000 PCE

Xem thêm >>
