Máy mài mũi khoan

Thương hiệu

Máy mài mũi khoan DAREX

Practical, fast, precise. In 3 steps you can obtain an optimal tapered shell grind including pointing. High-quality CBN and diamond abrasive discs ensure outstanding tool life and a clean finish. For twist drills Ø 3 - 21 mm, optionally up to 30 mm; point angle continuously variable from 118° to 150°. Basic equipment: 5-jaw precision chuck for Ø 3.0 - 12.0 mm, 7-jaw precision chuck for Ø 12.0 – 21.0 mm, CBN abrasive disc with grit 180, CBN point thinning disc with grit 180 and radius 0.3 mm; operating instructions.

Designs:

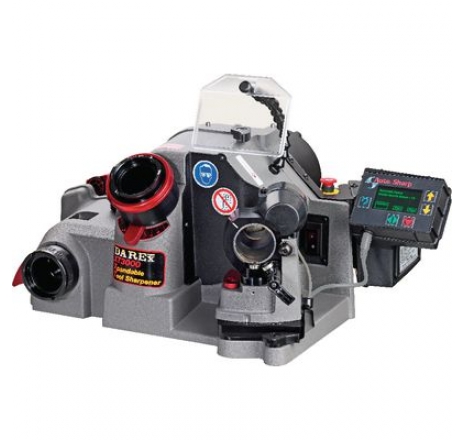

582030.0200 XT-3000 AUT: with mechanical drive, electronic control unit and display screen. Advantages: mechanically driven sharpening; the operator no longer needs to rotate the chuck; also ideal for regrinding extra-long twist drills; pre-programming of the sharpening and spark-out stages; the counter allows an exact overview of costs; a second, pre-set chuck allows a considerable increase in production output

Appropriate accessories:
482040 Accessories DAREX


Options: Precision chuck with set of sharpening wheels for drill diameters 1.5...7.0 mm, sharpening attachments for drill diameters 21...30 mm, for point angles 90°...120°, for step drills with diameter 12...21 mm, for countersinks, for wood and sheet metal drills, chucks for left-hand drills, vacuum system, base cabinet.


USA

Made in Usa

Mã & tên hàng Mài mũi khoan (mm)Tip angle Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
3...21118°...150°
349,254,000
PCE
3...21118°...150°
452,040,000
PCE

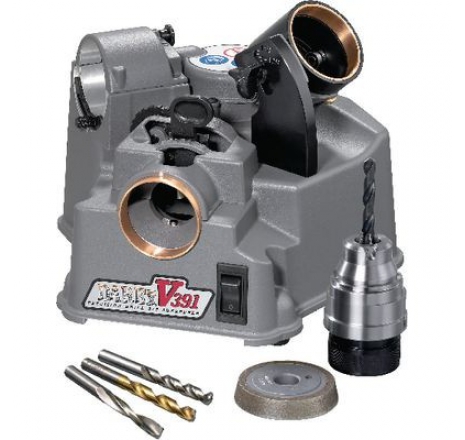

Máy mài mũi khoan DAREX

Very easy operation, for right-hand cutting twist drills, point angle can be set 118° to 140°, positively driven grinding operation and pointing in a single clamping; relief grinding continuously variable. Supplied with CBN abrasive disc, chuck ø 3 - 19 mm, operating manual, explanation video.

Appropriate accessories:
482070 Accessories DAREX


USA

Made in Usa

Mã & tên hàng Mài mũi khoan (mm)Tip angle Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
3...19118°...140°
Liên hệ
PCE

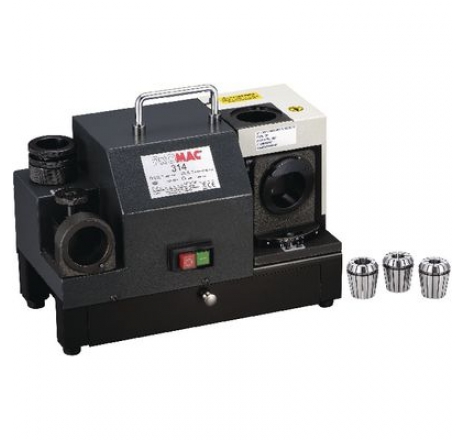

Máy mài mũi khoan PROMAC

Precision grinding ± 0.05 mm, fast edge and point angle grinding in one drill clamping, simple and precise drill positioning produces the most precise point angle. Powerful motor at constant speed produces the most precise surface pattern. Simple abrasive wheel change. Package content: 1 CBN abrasive wheel, 1 set collet chucks, type ER, operating instructions.

Appropriate accessories:
239000 Collet chuck REGO-FIX ER DIN 6499,

482091 Accessories



SWITZERLAND

Made in Switzerland

Mã & tên hàng Mài mũi khoan (mm)Tip angle Đơn giá (vnđ) Số lượng Đặt, Gom hàng Tình trạng hàng
3...1390°...140°
Liên hệ
PCE
12...25100°...136°
90,757,000
PCE
