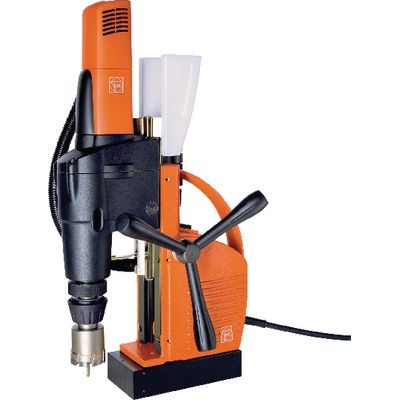

Máy khoan rút lõi FEIN KBU 35-2 Q
GERMANY

Made in Germany

Mã đặt hàng: 466300.0130

Giá web VND

70,372,000

để hiện giá đại lý

Hàng về sau: 2-4 tuần

Số lượng

PCE

Economical working due to core drilling technology, no predrilling necessary, drills faster than conventional solid drills. The magnetic feet are dimensioned so that the machines can be set up in extremely tight spaces– also for overhead work. The QuickIN quick tool change system and the continuously variable stroke range adjustment make it possible to change large drilling tools without removing the core drilling unit from the workpiece.
Common features: High-torque FEIN high-performance motor, anticlockwise/clockwise operation, powerful electromagnet, integrated cooling lubricant unit, electronic overload protection, restart lock, continuously adjustable double dovetail guide, tool-free core bit quick change system.
Appropriate accessories:
466302 HSS FEIN core drill
466305 HM ULTRA core drill FEIN
466310 Carbide core drill FEIN
466312 Accessories
466350 HSS core drill
Other models for core drilling to 80 mm and thread cutting to M27 are available (special brochure).

Hiển thị thêm

Thông số kĩ thuật

Model KBU 35-2 Q
Mũi khoan HSS/HM max (mm) 35
Tool holder QuickIn
Thông số chi tiết

Type        KBU 35-2 Q
Core drills max. HSS/HM Ø    mm    35
Drilling depth    mm    50
Spiralbohrer max. Ø    mm    16
Thread cutting performance    mm    M 14
Senken max. Ø    mm    31
Reiben max. Ø    mm    16
Power consumption    W    1100
Load speed 1    min-1    130...520
Load speed 2    min-1    400...1600
Kernbohreraufnahme        QuickIn
Tool holder        QuickIn
Stroke    mm    135
Gesamter Hubbereich    mm    260
Magnetic force    kN    9.5
Magnetic base    mm    186 x 70
Connection    V/Hz    230 / 50
Weight    kg    11.0
Version        1 case, 1 coolant tank, 1 lashing strap, 1 chip hook, 1 centring pin, 1 contact protector
