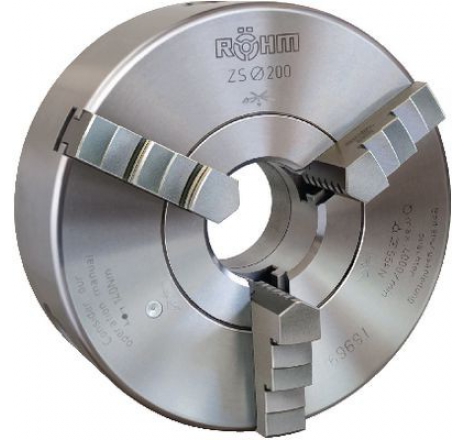

Mâm cặp máy tiện 3 chấu RÖHM - 249040.0300

Made in Germany

Electronic Catalog

Mã đặt hàng: 249040.0300

Röhm 630 ZS steel
DIN 55029, with stud bolt for Camlock
Design
Steel body made of special casting, one-piece jaws. Spiral ring drop-forged, balanced, hardened. Screw-thread flanks ground on both sides. Lubrication via nipples.
Application
Proven and universally usable design on lathes, rotary tables, dividers, etc.
Normal accessories
1 set of drill jaws (externally graduated)
1 set of turning jaws (internally graduated)
1 chuck key, fastening screws

Appropriate accessories:
249070 Block jaw BL
249080 Base jaw GB
249090 Top jaw AB
250940 Set of hollowing rings
401000 Hand push gun ABNOX

Appropriate spare parts:
249050 Drill jaw BB
249060 Turning jaw DB
323450 Square socket wrench
