Eto máy 5 trục

Thương hiệu

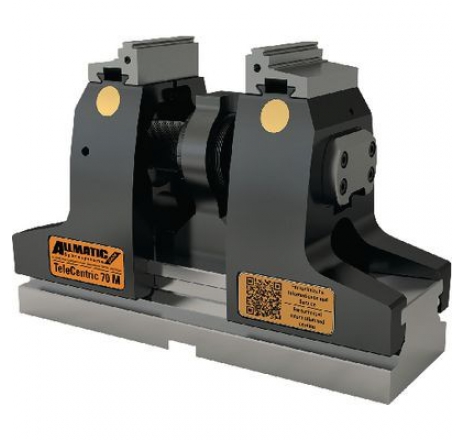

Eto máy 5 trục ALLMATIC TeleCentric 70

Area of application:

Ideal for use on 5-axis machining centres
Conventional clamping and grip clamping possible

Product features:
- Telescopic spindle, interference contour remains unchanged
- Centric, simple programming without zero offset
- Allowance of the material is symmetrically distributed
- Accessibility of the workpiece is independent of the span
- Symmetrical design = workpiece remains centred and parallel
- Quick change jaw system, tool-free jaw change using quick release
10 seconds per pair of jaws
- Reversible jaws: for min./max. spans with a jaw pair
- Constant clamping force by means of low-maintenance telescopic spindle

Appropriate accessories:
311005 Accessories ALLMATIC TeleCentric


Scope of delivery:
1 TeleCentric 70 without jaws
1 support plate for transport
1 hand crank for pre-setting

GERMANY

Made in Germany

Mã & tên hàng Lực ép (kN)Má kẹp rộng (mm)Khoảng kẹp (mm)Dài (mm) Đơn giá (VNĐ) & Số lượng Tình trạng hàng

311000.0100

Eto máy 5 trục ALLMATIC TeleCentric 70 9…135 mm

3570 / 1009…135286
165,134,000 PCE

311000.0200

Eto máy 5 trục ALLMATIC TeleCentric 70 42…200 mm

3570 / 100 42…200351
177,495,000 PCE
