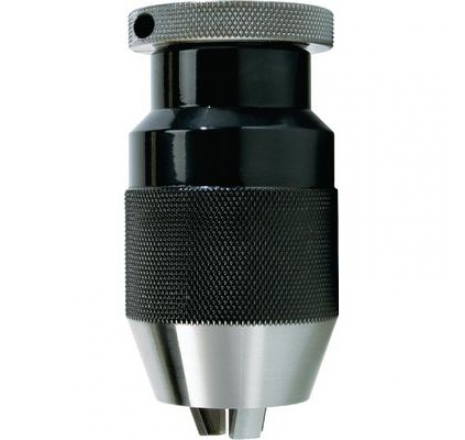

Bầu kẹp mũi khoan ALBRECHT, 65-B12

Made in Germany

Electronic Catalog

Mã đặt hàng: 241000.0300

Type SBF, keyless, not drilled through, all parts hardened, with ball bearing, with inside taper to DIN 238, only for clockwise operation.
Concentricity: 0.02-0.045 mm.

Designs:
241000.0800 - Cone B18A: This inside taper is 7 mm shorter than the normal taper B18. It requires the corresponding arbor insert B18A.

Appropriate accessories:
231120 Taper drill chuck FUTURO DIN 69871, Form A, balanced for 15000 rpm.
241020 Spare parts
242500 Insert cone
242540 Insert spindle

Usable with:
231120 Taper drill chuck FUTURO DIN 69871, Form A, balanced for 15000 rpm.
231360 Taper drill chuck FUTURO MAS-BT (JIS-B 6339), Form A, balanced for 15,000 rpm.
483503 Bench drill FLOTT
483505 Bench drill FLOTT
483510 Bench drill FLOTT
483620 Boring and milling machine PROMAC
Appropriate spare parts:
241020 Spare parts
